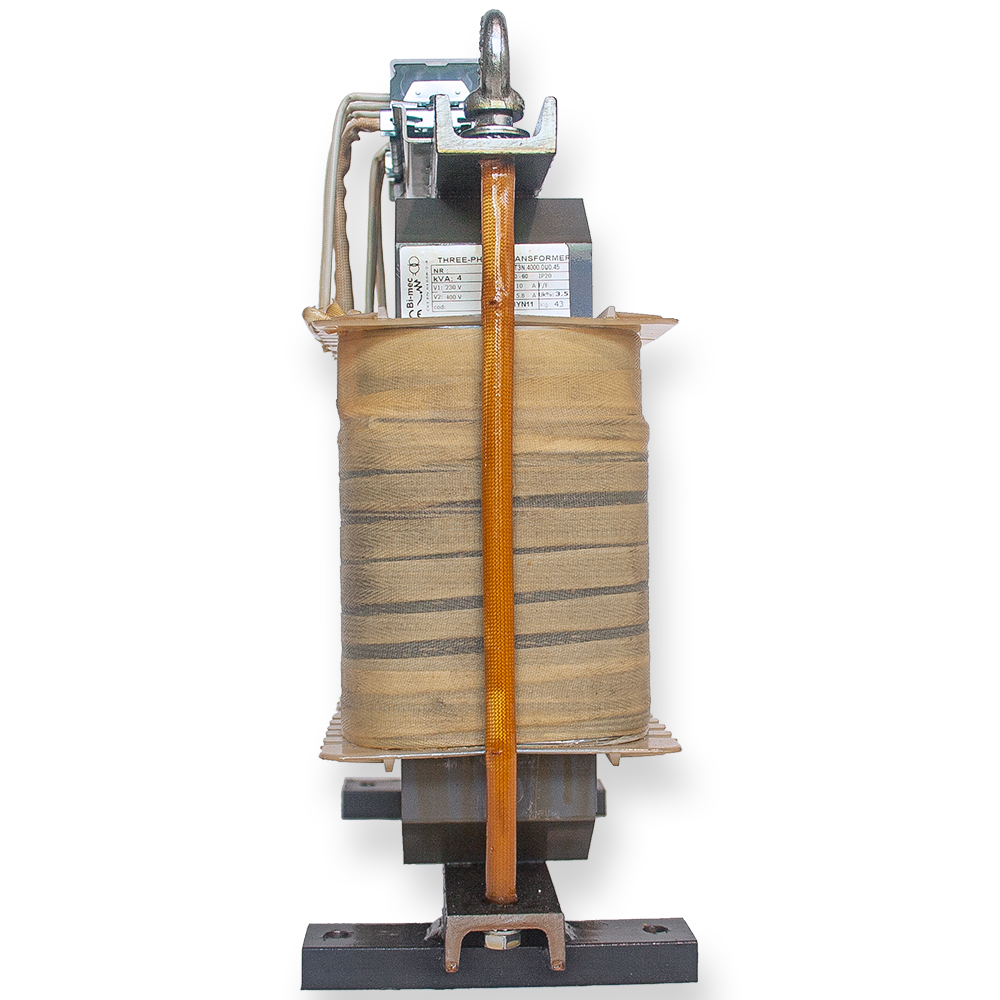

T3 ULA SERIES

T3ULA-5
DOWNLOAD DATA SHEET
TRANSFORMERS AND AUTO-TRANSFORMERS THREE-PHASES

Transformers and Auto-transformers UL, suitable industrial use and suitable for any use.



Three-phases autotransformers from 1 KVA input 480 V and output 208 V 60Hz clamps in one side: VA equivalent = ((480-208)/480)x1000 =566,67. The next power is then 800VA.

  • Power from 20 VA to 23.000 VA;;
  • Input voltage from 100 to 600 V;
  • Output voltage from 10 to 600 V;
  • Degree of protection: IP00;
  • Connector protection: IP20;
  • Insulation class: F;
  • Maximum output current 250 A;
  • Frequency: 50-60Hz;
  • Maximum ambient temperature: 40° C;
  • Approvals: CEI EN 61558-2-4-6-13, XPTQ2/8 file N. E473201.
