T7F SERIES

T7F-A
DOWNLOAD DATA SHEET

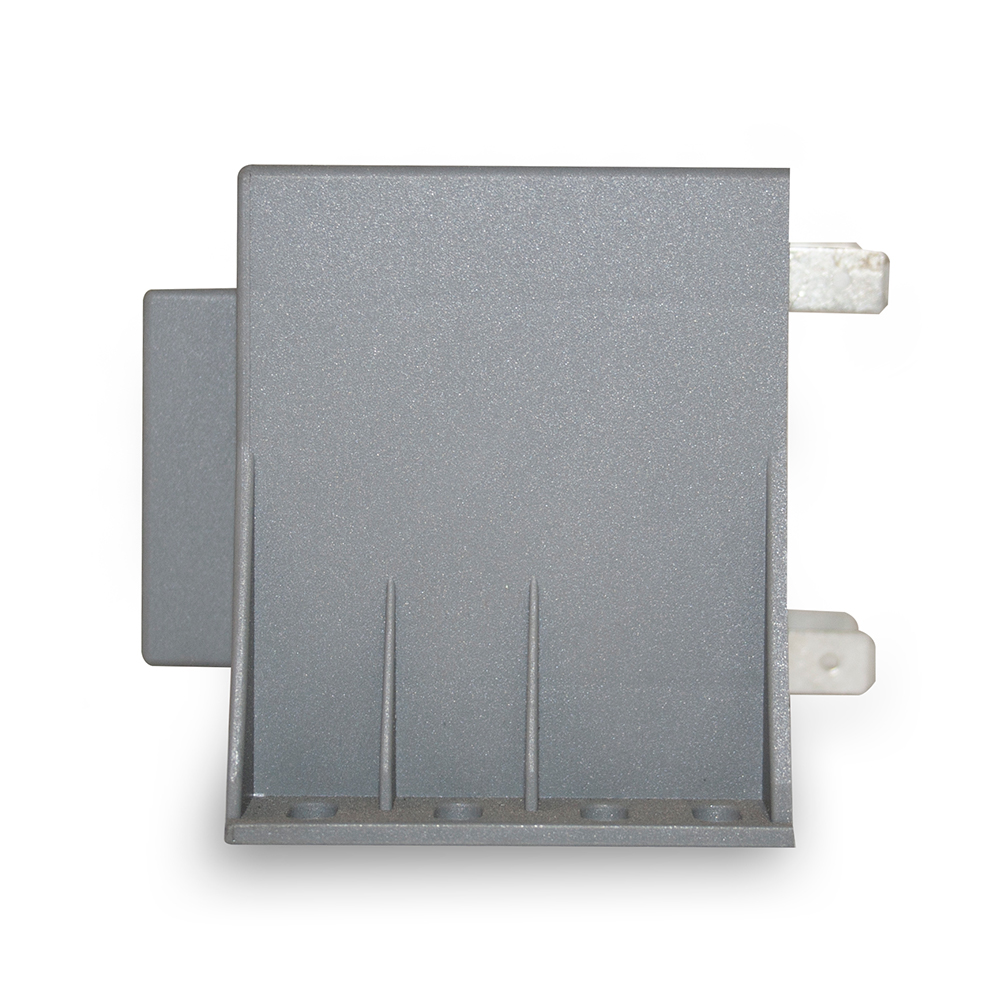

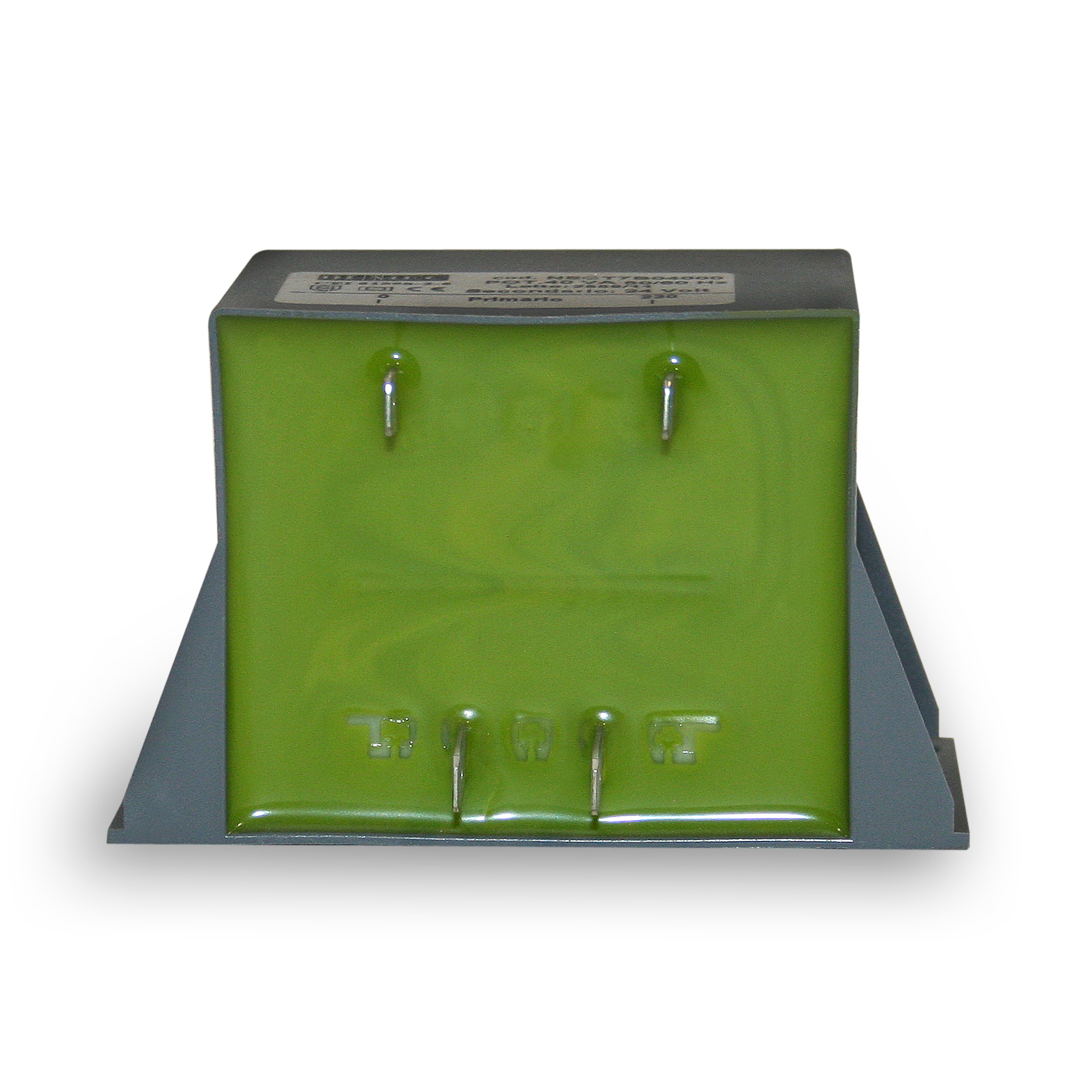

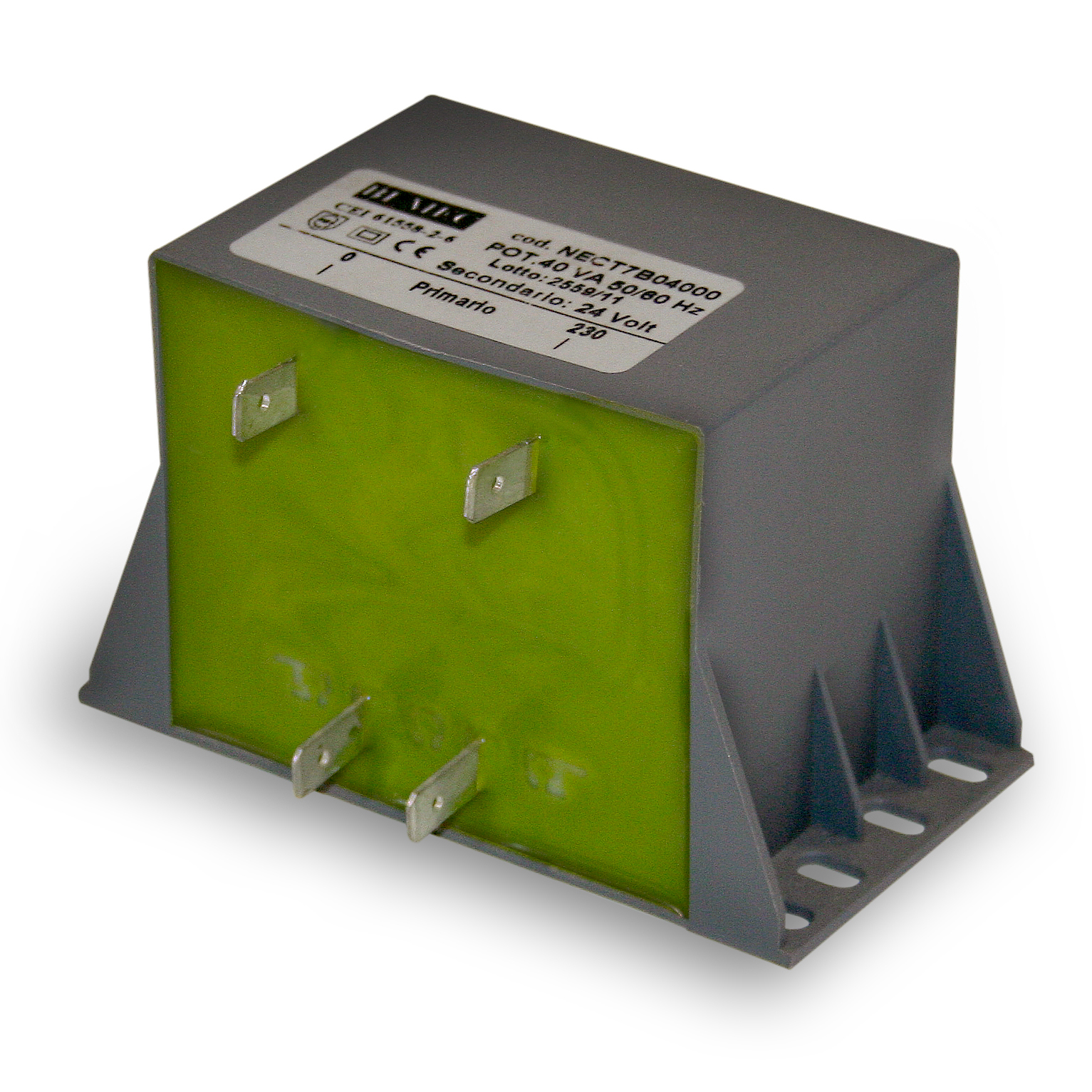

RESIN-ENCAPSULATED VERTICAL SINGLE-PHASE TRANSFORMERS

Safety isolating single-phase transformers.

Transformers suitable for any use requiring continuous duty at the rated power marked on the plate.

These transformers offer the same performance as the T4B series, but with connection by flat quick-connect terminals (6.3×0.8).

  • Protection rating: IP21;
  • Dielectric strength: 3 kV/50 Hz x 1’;
  • Insulation Class: F;
  • Thermal class: B;
  • Starting current: 15-26 times the primary rated current for about 10ms;
  • Short circuit resistance: not proof;
  • Protection Class: II;
  • Operating frequency: 50/60 Hz.
